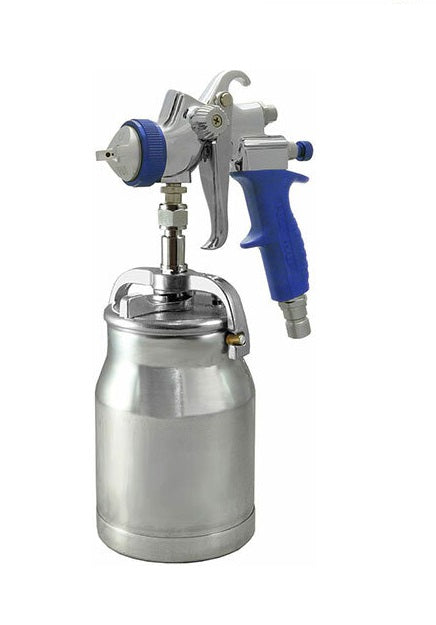

Fuji T-70 Series Gun

The Fuji T70 spray gun is the newest and best Fuji bottom-feed HVLP spray gun, ideal for spraying paint and other finishes on medium to large surfaces.

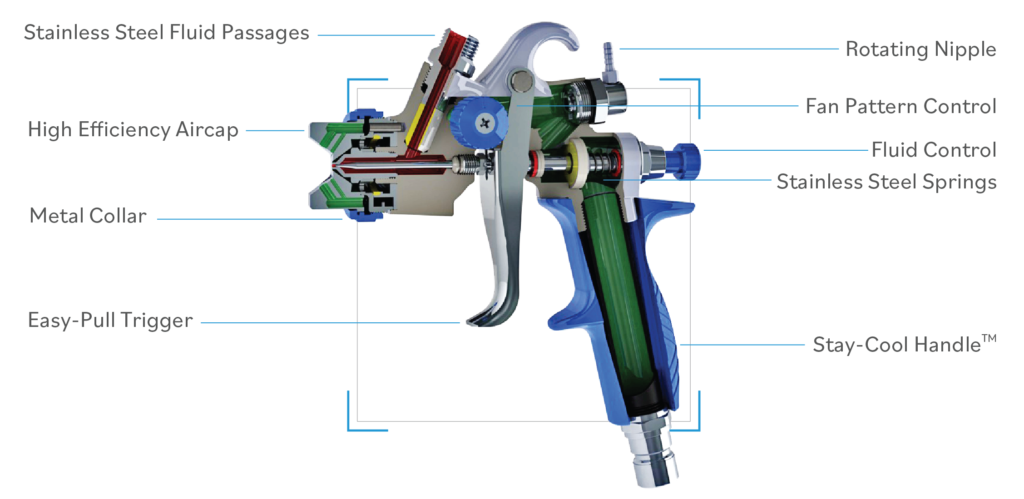

• High-Efficiency Nozzle optimized for superb atomization, smooth finishes, minimal waste; 1.3mm air cap installed, 6 other sizes available.

• Lightweight (2.3 lbs.) comfort with ergonomic Easy Pull trigger and Stay-Cool handle.

• Durable build – metal body and knobs, non-corrosive stainless steel fluid passages.

More Features:

• Well balanced center-mounted quart siphon fluid cup – easy to refill and set down, holds more fluid than a gravity spray gun cup, and can be used with a pressure pot for efficient spraying of large surfaces, or with a disposable 3M PPS 2.0 HVLP kit for easy cleanup.

• Patented side-mounted fan pattern control knob for easy reach, (adjusts spray size incrementally to any point between a 1” circle to 12 inch oval), plus rear-mounted fluid control knob, front collar to adjust spray pattern to circle, horizontal, or vertical.

• Non-Bleed design minimizes noise, air turbulence and dust, paint buildup on nozzle tip.

• Rear rotating nipple for pressure tubes for easy adjustment left or right-handed.

More Specifications:

• Fuji 24-month warranty on Parts and Labor.

• BRAND: Fuji Spray

• MPN: 5070

• UPC / GTIN: 612850000000

• SHIPPING WEIGHT: 2.3 lbs

• Blue handle and trim.

• Canadian design and technology; manufactured in Taiwan.

• Accessories included: Ford #4 viscosity cup, wrench, cleaning brush, User Manual.

Available separately:

• 6 Additional High-Efficiency air caps in 5100 series: 1.2, 1.4, 1.7, 2.0, 2.2 mm)

• #S18 adapter for using 3M PPS 2.0 standard cups and liners

• 8-ounce plastic mini-cups with lids for spraying and storing smaller quantities of finish. (Requires the #9080 mini-cup assembly; sets of 6 mini-cups and lids also available.)

• Extra aluminum quart cup is also available (without a lid)

The #3 (1.3mm) air cap setup is the standard installation
