Fuji 5100 Aircap Sets T-Series Spray Gun
Regular price
$72.26
Couldn't load pickup availability
Prop 65
WARNING: This product can expose you to [name of chemical], which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
A cleaner spray pattern amounts to less overspray. Less Overspray = More Savings!
Color Coding of T-Series aircap sizes is used to make aircap selection and changes much easier.What Fuji has done is reduce the width of the actual fan pattern. If we take a vertical pattern, the height (lets say 9) stays exactly the same, but the width of the H, compared to standard Aircaps is much less. Whats the advantage of a thinner-width fan pattern? Well, as you know, when you spray across a board, as you come off the edge, particles are spraying into the air and adding to the overspray (mist) in the air. But you have to continue holding down the trigger until you finally pass over the edge of the board. You cannot stop at the edge of the board but must follow through past the board. The wider the width of the fan pattern, the longer it takes to pass off the edge of the board. It is this extra width of fan pattern that is adding to the number of airborne particles with each pass. It becomes even more significant when you realize how many times you pass over the edge of a board when spraying a cabinet or piece of furniture. The Fuji High-Efficiency Aircap is an exclusive feature from Fuji.

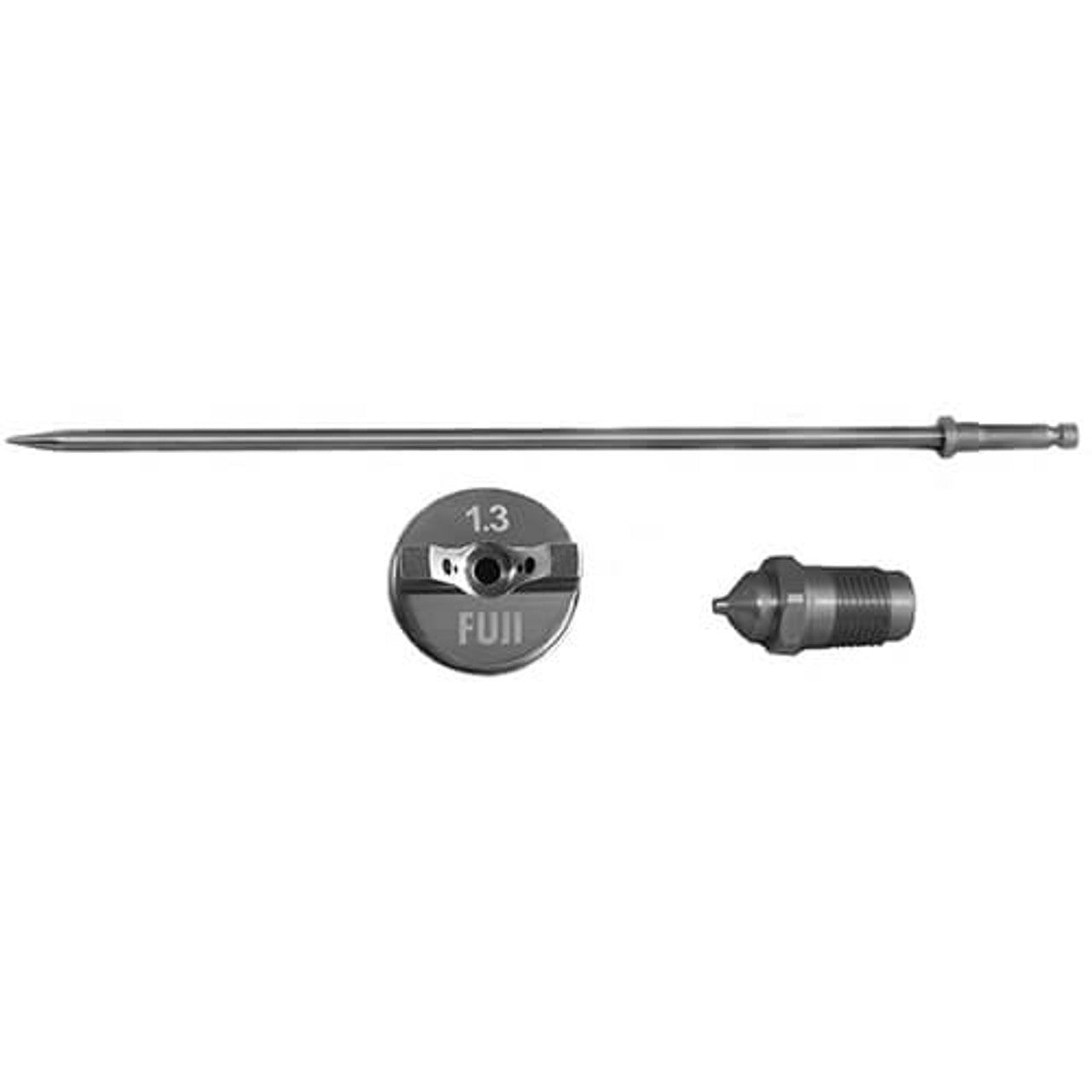

#3, 1.3mm - Similar to the #2 but with more coverage. Automotive enamel, airplane and marine finishes. Nitrocellulose lacquers, water-based finishes, varnish, urethanes, enamel, latex for louver doors, trims and cabinets, and oil based paints. FOR T-SERIES SPRAY GUN ONLY.

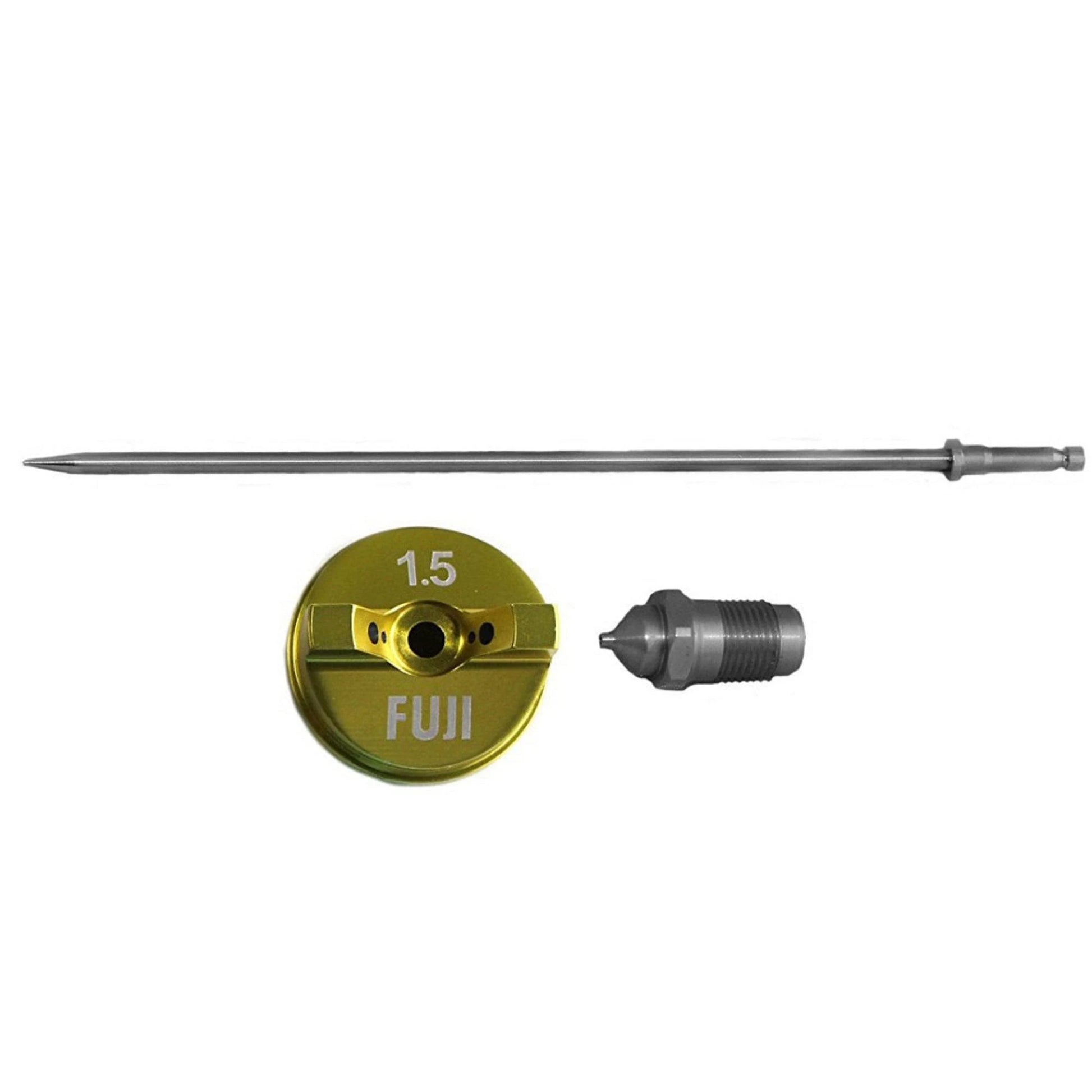

#4, 1.5mm - Similar to the #3 but requires less thinning. Automotive enamel, airplane and marine finishes. Nitrocellulose lacquers, water-based finishes, varnish, urethanes, enamel, latex for louver doors, trims and cabinets, and oil based paints. FOR T-SERIES SPRAY GUN ONLY.

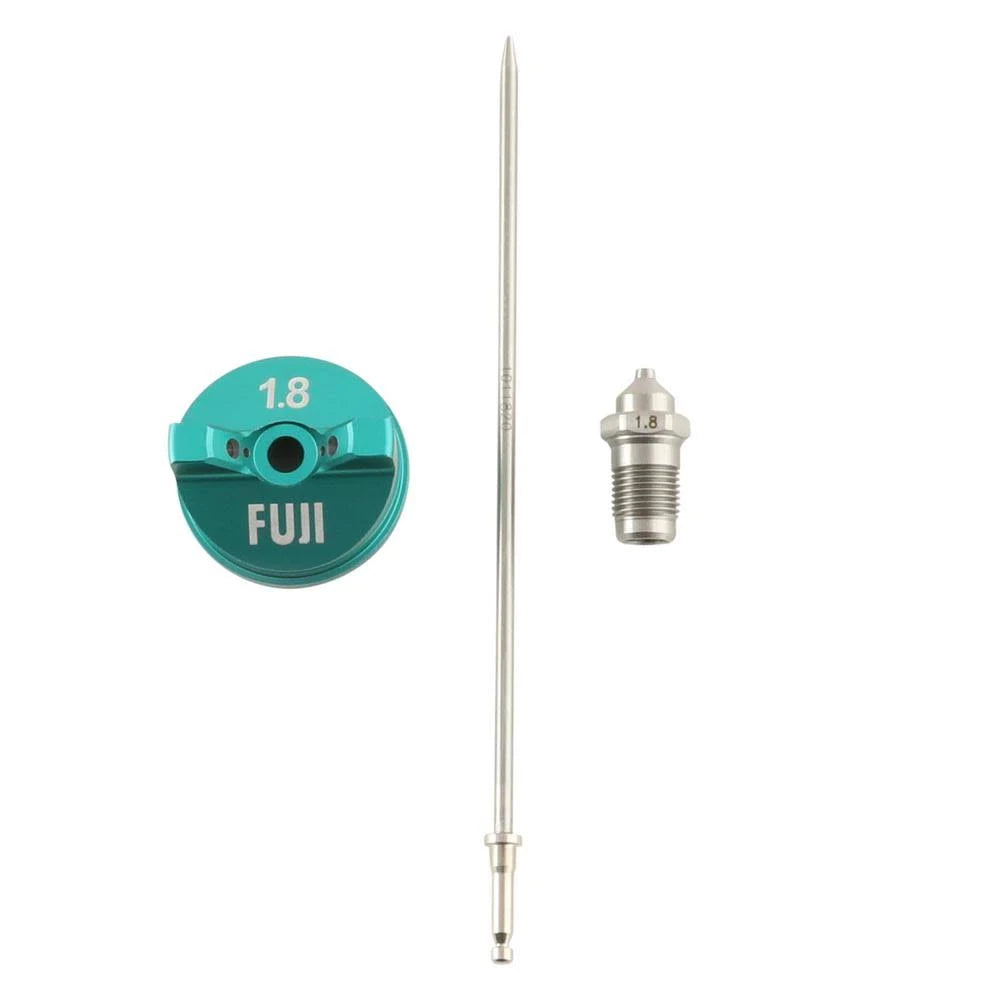

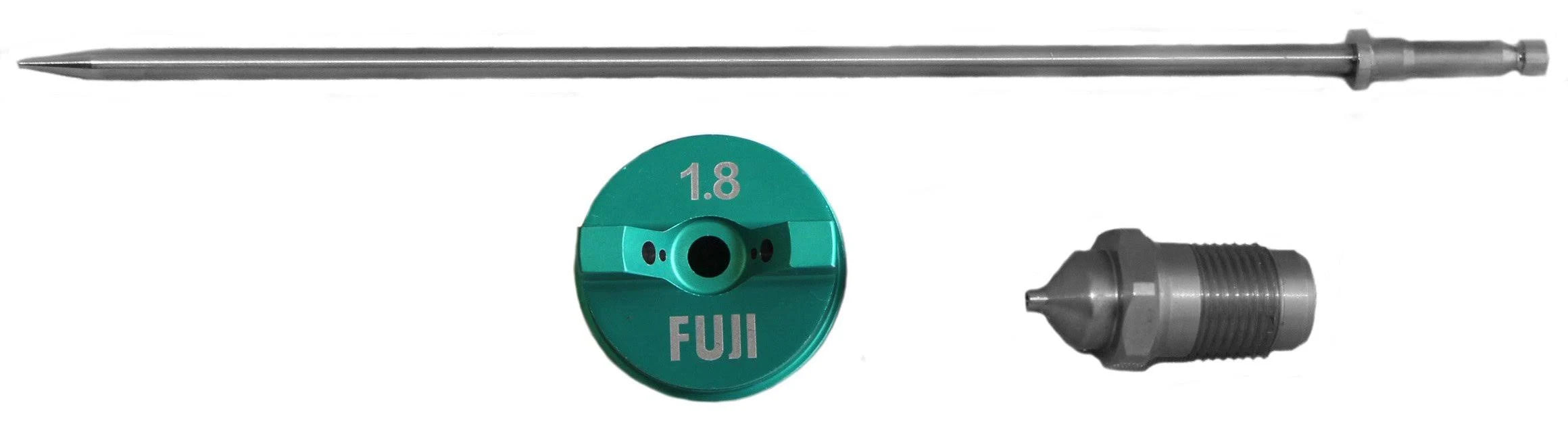

#5, 1.8mm - Ideal for larger surfaces, and thicker layers. Catalyzed lacquers, primers, varnish, urethanes, enamel, industrial coating (higher viscosity), sealers, polyurethane, oil based paints, epoxy enamels, plastic, adhesives, floor paving paints, latex (walls), splatter paints and multi fleck paints. FOR T-SERIES SPRAY GUN ONLY.

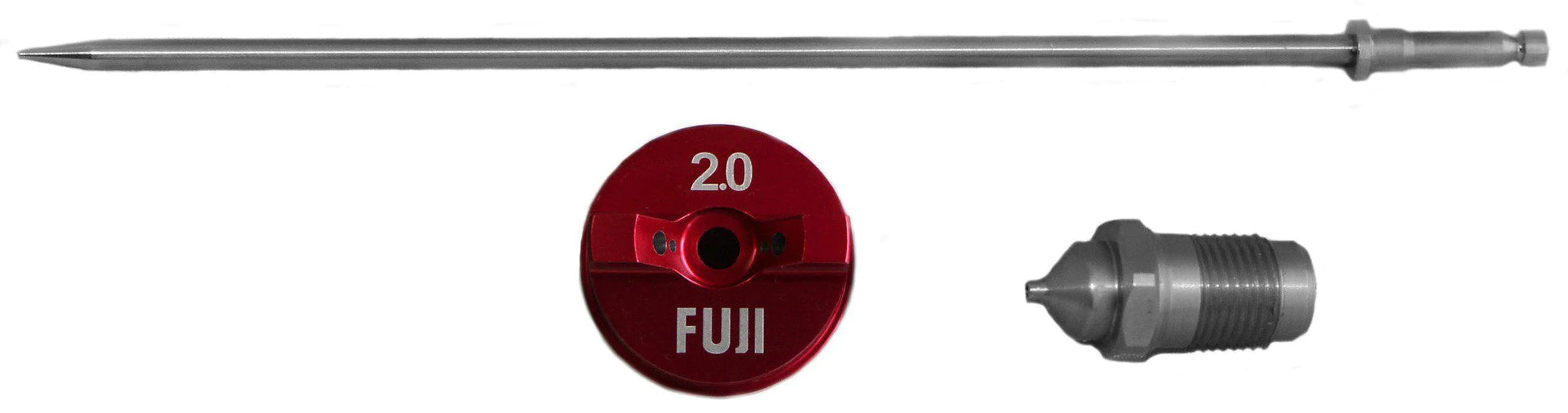

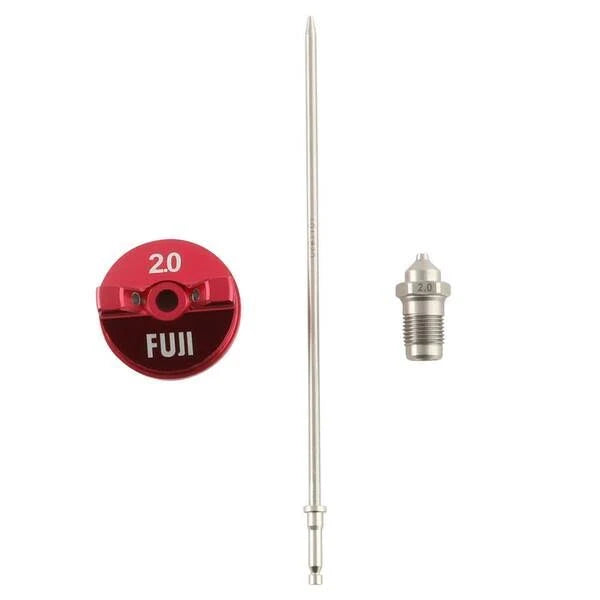

#6, 2.0mm - Similar to the #5 but with more coverage. Ideal for larger surfaces, and thicker layers. Catalyzed lacquers, primers, varnish, urethanes, enamel, industrial coating (higher viscosity), sealers, polyurethane, oil based paints, epoxy enamels, plastic, adhesives, floor paving paints, latex (walls), splatter paints and multi fleck paints. FOR T-SERIES SPRAY GUN ONLY.
Tip Sizes Sold Individually
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.”
